GRP-GRE
Materials
GLASSFIBER+RESIN
- GRE (Glass fiber Reinforced Epoxy)
- GRVE (Glass fiber Reinforced Vinyl ester)
- GRP (Glass fiber Reinforced Polyester)
Method

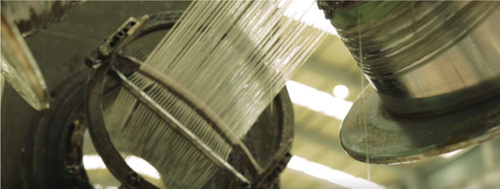

FILAMENT WINDING
- Filament wound at 54 degrees
- Curing, de molding and machining progress follows after the winding process
Product Series
HGP Series
| HGP-E9C (Vessel / Offshore plant) | 9bar / L3 / Conductive |
| HGP-E16C (Vessel / Offshore plant) | 16bar / L3 / Conductive |
| HGP-E25C (Offshore plant) | 25bar / L3 / Conductive |
| HGP-P5~10N (Offshore plant / Onshore plant) | 5~10bar / X / Non Conductive |
| HGP-V5~10N (Offshore plant / Onshore plant) | 5~10bar / X / Non Conductive |
| HGP-V16~18N (Offshore plant / Onshore plant / Firefighting) | 16~18bar (K.F.I Cert) |
| HGP-E23N (Onshore plant / Firefighting) | 23bar (K.F.I Cert) |
| HGP-E16NW (Potable Water / Water & Sewage) | 16bar |
| HGP-V16NW (Potable Water / Water & Sewage) | 16bar |
Product Specifications
HGP E9C
| Certificates | ABS / DNV / KR / LR / NK / BV / RS |
|---|---|
| Diameter Range |
25A~900A 1350A under test for approval Feb, 2021 |
| Applications | Sox Scrubber(New building, Retrofit)/ Ballast - Line(New building, Retrofit), BWTS(Retrofit) etc. |
| Design Pressure |
9 BAR (applicable 0~9 bar) |

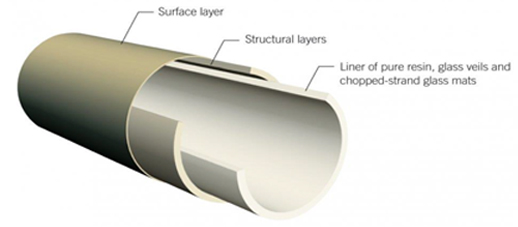

| Wall Structure | MCO : Resin rich with Mat inner Layer & Core MCU : Resin rich with Mat inner Layer & Core & UV Coating (For external exposure) EX : Extra Wall Structure, Owner Requirement |
| Joint Methods |
Butt & Wrap Bell & Spigot / Flange / Double O-ring Expansion coupling |

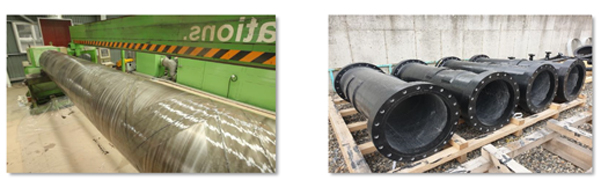

| Items | PIPE / Elbow Flange Tee / Reducer / Miter / Bell mouth etc. |
HGP E16C
| Certificates | ABS / DNV / KR / LR / RINA |
|---|---|
| Diameter Range |
25A~700A |
| Applications | Sox Scrubber(New building, Retrofit)/ Ballast - Line(New building, Retrofit), BWTS(Retrofit) etc. |
| Design Pressure |
16 BAR (applicable 0~16 bar) |
| Wall Structure |
MCO : Resin rich with Mat inner Layer & Core MCU : Resin rich with Mat inner Layer & Core & UV Coating (For external exposure) EX : Extra Wall Structure, Owner Requirement |
| Joint Methods |
Butt & Wrap Bell & Spigot / Flange / Double O-ring Expansion coupling |
| Items | PIPE Elbow Flange Tee / Reducer / Miter / Bell mouth etc. |
Annual Production
| Applications | Types | Specific types | Capacities |
|---|---|---|---|
| Sox scrubber |
OPEN Type |
Discharge line only Inlet & Outlet - |
30 vessels / month 20 vessels / month 10 vessels / month |
| Ballast line | - | - | 15 vessels / month |
| BWTS retrofit | - | - | 30 vessels / month |
Superiority of GRE pipe
Chemical Resistance
- No damage from Oil, Seawater, Sewage, Chemicals,Exhaust gas
- Lower maintenance cost, Longer replacement period than steel
Dimensional Stability
- Thermal expansion in the circumferential & axial directions during the production sets off dimensional deformation.
Wide Range of Production
- Diameters (25A~900A) with major Classes(up to 25 bar )
- 1350A under tests for approval, Feb,2021
Light Weight
- ¼ of a weight of steel pipe
- Easier installation & handling
Low Installation Cost
- Cheaper and easier joint method than Welding one
- Lower transportation cost
Low Friction Loss
- Smoother surface with 43% lower friction loss than steel pipe
- Superior fluid flow
- Hazen Williams Factor 150
- Low maintenance cost for its semi permanent life cycle
- Superior properties than other pipe materials
- Used in oil field and marine industry, design pressure up to 25 bar.
- Higher temperature allowance up to 108 ℃

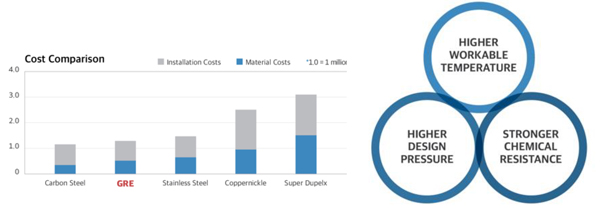

Low life-cycle cost
